Steel Rail

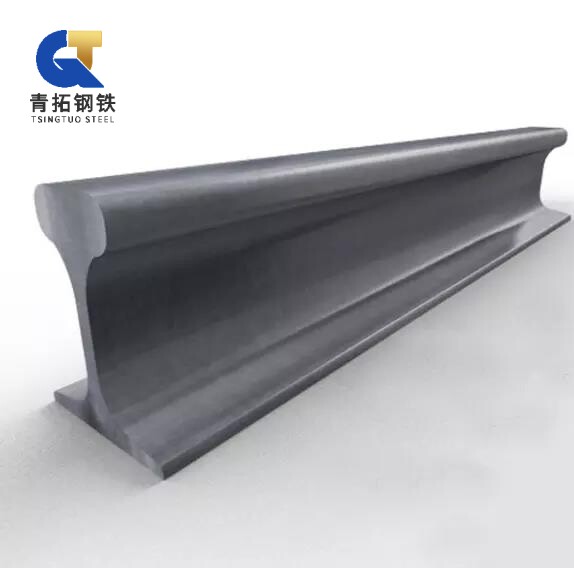

Steel rail, also known as railroad track or railway track, is a vital component of railway infrastructure that supports and guides railway vehicles, such as trains, trams, and subway cars. Steel rail provides a smooth, stable surface for trains to travel on, ensuring safe and efficient transportation of passengers and freight.
Inquiry

Product Parameters

StandardSepc.Material   Typical Grade
UIC860UIC54700,900A,900B
UIC60
EN13674.150E1
R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT
54E1
60E1
60E2
BS-11-1985BS80A700,900A,900B
BS90A
BS100A
AREMA115RESS,HH,LA,IH
136RE
ASCE60U71Mn
ASCE85U71Mn
GB   2585-200750kg/mU71Mn
60kg/mU75V
75kg/m
TB/T2344-201250kg/mU71Mn,U75V,U77MnCr
60kg/mU78CrV
75kg/m
GB   11264-19898kg/mQ235
12kg/mQ235
15kg/m55Q, Q235
18kg/m55Q, Q235
22kg/m55Q, Q235
24kg/m55Q, Q235
30kg/m55Q, Q235
38kg/m50Mn, U71Mn
43kg/m50Mn, U71Mn
GB   Crane railsQU70U71Mn
QU80U71Mn
QU100U71Mn
QU120U71Mn


Standard: ASTMA1, AREMA
SizeDimension(mm)WeightMaterialLength (m)
Head(mm)Height(mm)Bottom(mm)Web(mm)(kg/m)
ASCE 2538.169.8569.857.5412.47006-12
ASCE 3042.8679.3879.388.3314.887006-12
ASCE 4047.6288.988.99.9219.847006-12
ASCE 6060.32107.95107.9512.329.767006-12
ASCE 7562.71122.24122.2413.4937.2900A/110012-25
ASCE 8565.09131.76131.7614.2942.17900A/110012-25
90RA65.09142.88130.1814.2944.65900A/110012-25
115RE69.06168.28139.715.8856.9900A/110012-25
136RE74.61185.74152.417.4667.41900A/110012-25
175LBs109.86152.4152.438.186.8900A/110012-25
Standard: BS11: 1985
SizeDimension(mm)WeightMaterialLength (m)
Head(mm)Height(mm)Bottom(mm)Web(mm)(kg/m)
50 O52.39100.01100.0110.3224.8337006-18
60 A57.15114.3109.5411.1130.618900A6-18
75 A61.91128.59114.312.737.455900A8-25
75 R61.91128.59122.2413.137.041900A8-25
80 A63.5133.35117.4713.139.761900A8-25
80 R63.5133.3512713.4939.674900A8-25
90 A66.67142.8812713.8945.099900A8-25
100 A69.85152.4133.3515.0850.182900A8-25
113 A69.85158.75139.72056.398900A8-25
Australian Standard Railway
standard:AS1085
SizeDimensionWeight (kg/m)Length Material
Head(mm)Height(mm)Bottom(mm)Web(mm)(m)
31KG63.5117.510811.531.58-15900A/1100
47KG70141.312714.346.5
50KG701541271550.8
60KG7017014616.561
68KG73.418615217.567.6
73KG701571463273.63
86KG10210215584.1185.5
89KG1021141785189.81


steel rail.jpg

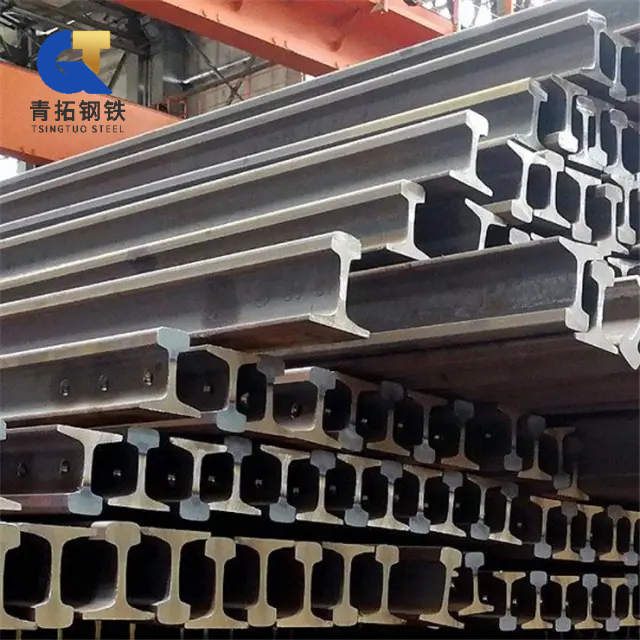

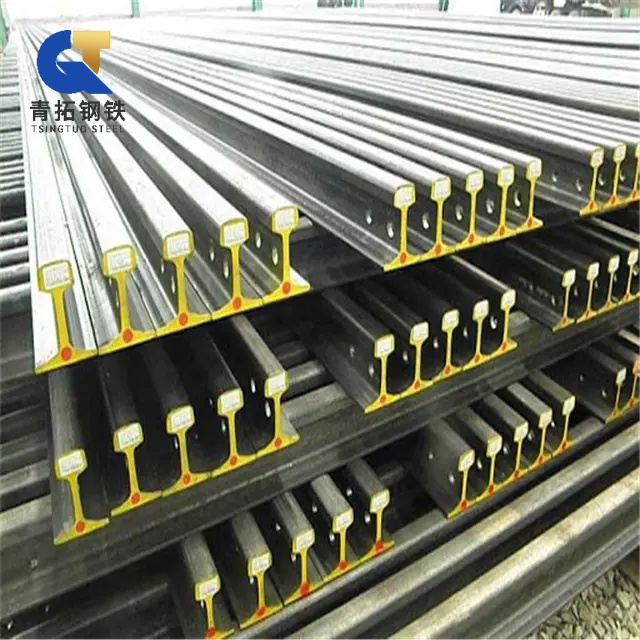

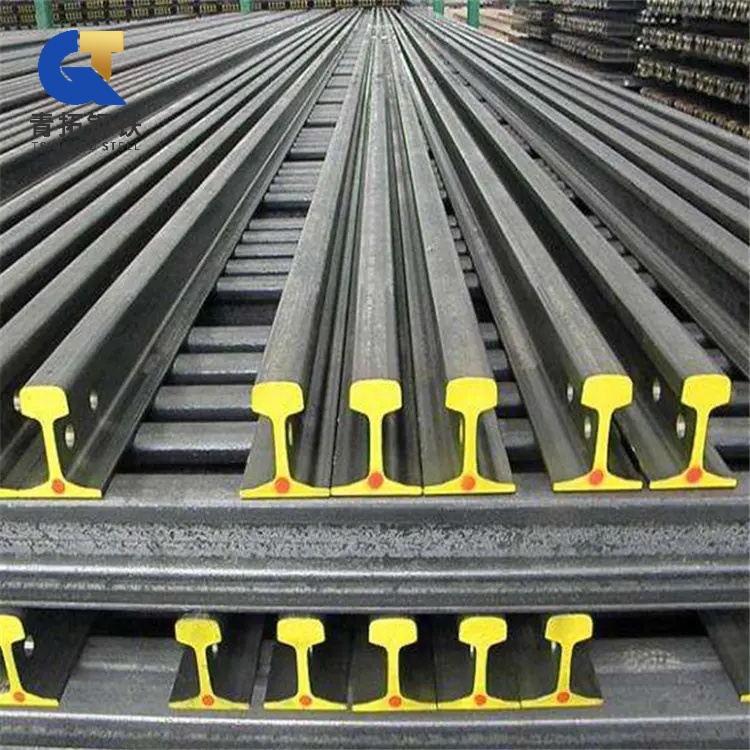

Product Display

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

Product Application

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

下载 (11).jpg

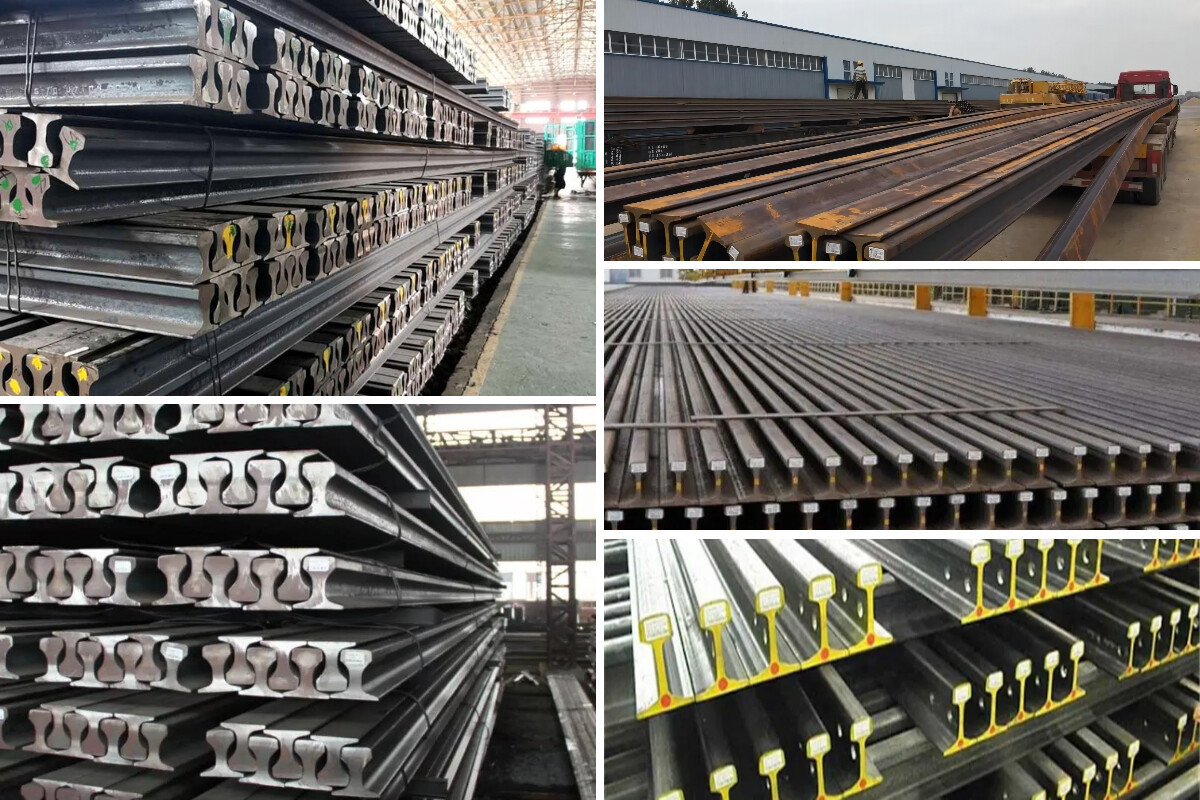

Product Packaging

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.

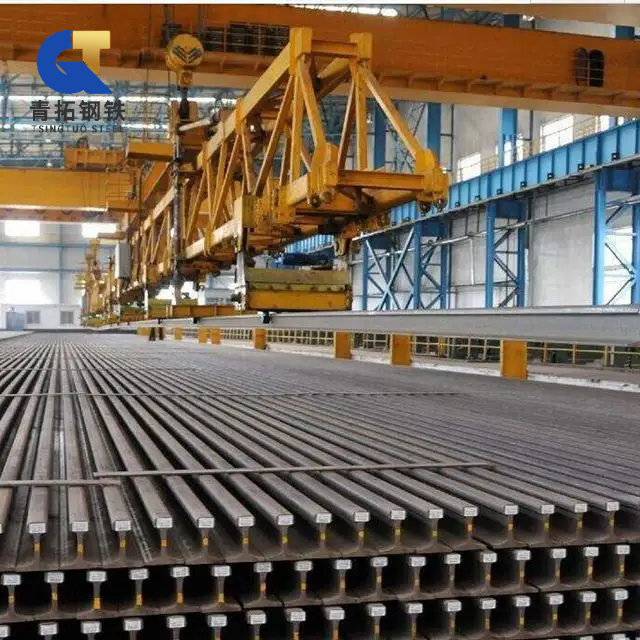

Factory Display

  • 19.jpg
  • 18.jpg
  • 17.jpg
  • 16.jpg
  • 15.jpg
  • 14.jpg
  • 13.jpg
  • 12.jpg
  • 11.jpg
  • 10.jpg
  • 9.jpg
  • 20.jpg

FAQ

How to ensure product quality?

We will provide the product quality inspection certificate before delivery. If necessary, you can also arrange for a third-party quality inspection company to inspect the goods.

What is your MOQ?

Our minimum order quantity is 5 tons, but if it is less than 5 tons, it is also possible, but the price will be slightly higher

What is your payment term?

TT: 30% down payment and 70% balance before shipping

LC at sight

Can you provide samples to test?

Yes, we provide customized samples within 3 days. Please share your technical specifications so we can prepare the most relevant samples for your testing requirements.

Are you a manufacturer or a trading company?

We are a direct manufacturer with our own factory. This allows us to control quality, cost, and lead times efficiently. You can expect competitive pricing, customization options, and strict quality control since we oversee the entire production process.

What is your lead time?

Small orders (<100T): 7-15 days

Medium orders (100-500T): 15-30 days

Large orders (>500T): Negotiable
Contact our sales team for a customized production plan.
